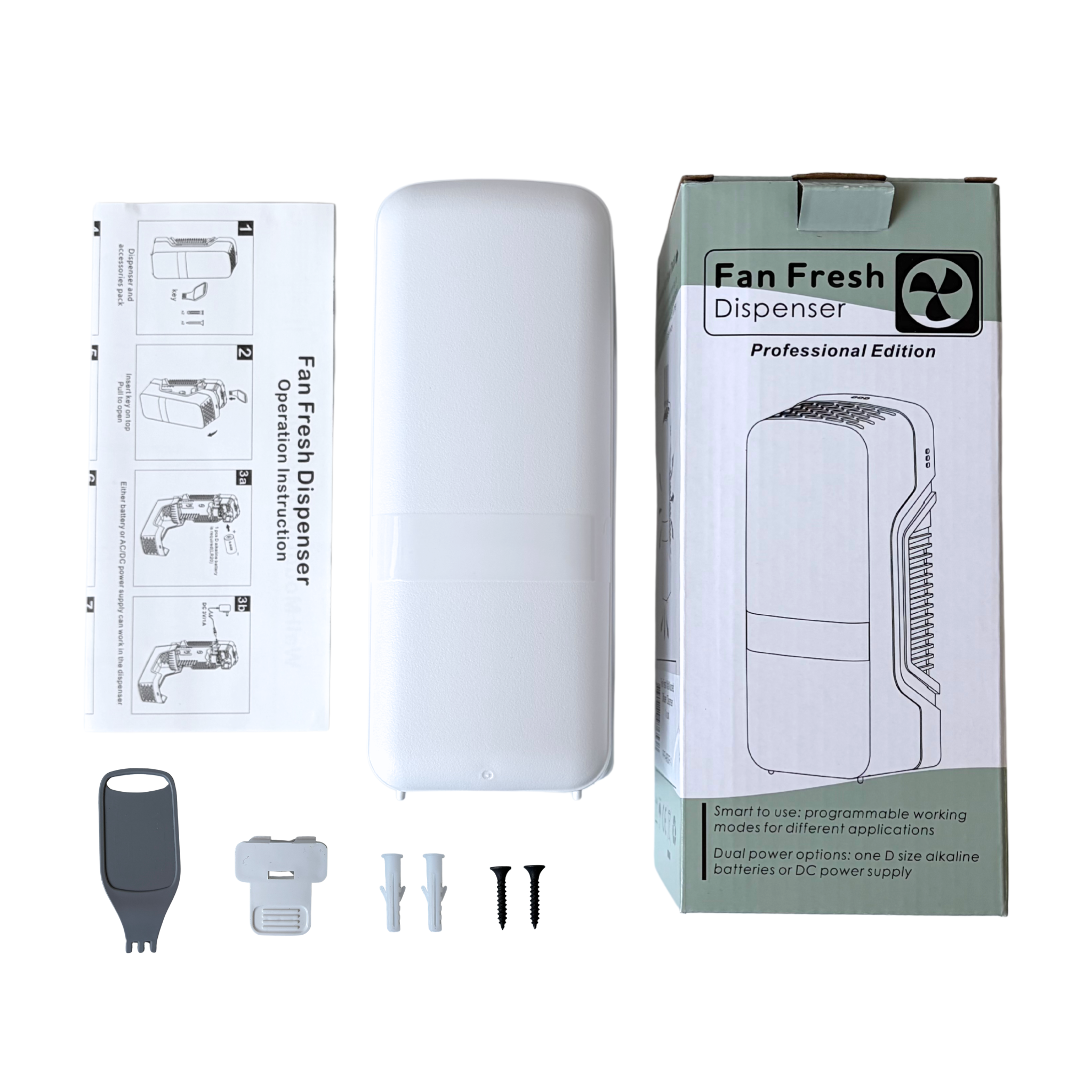

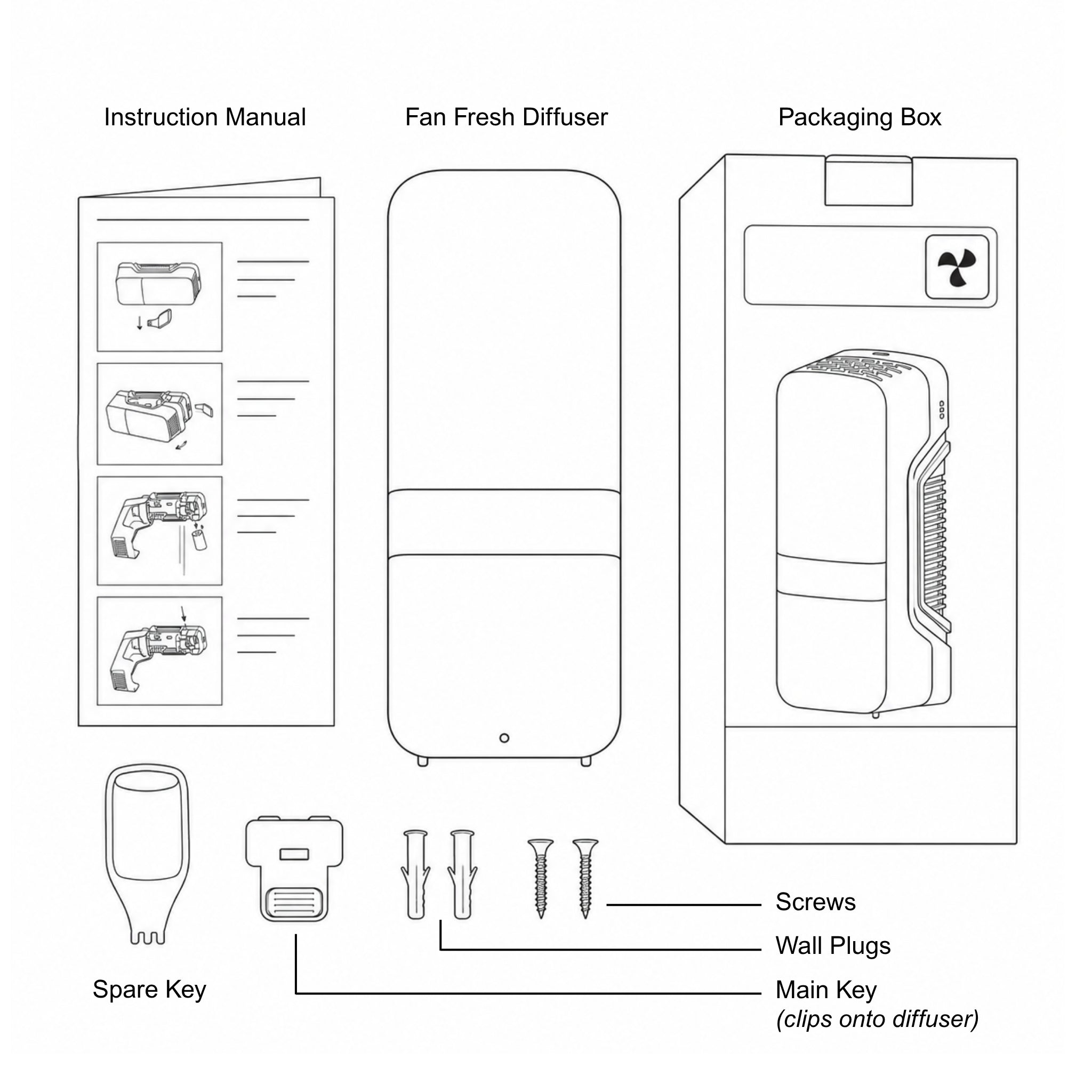

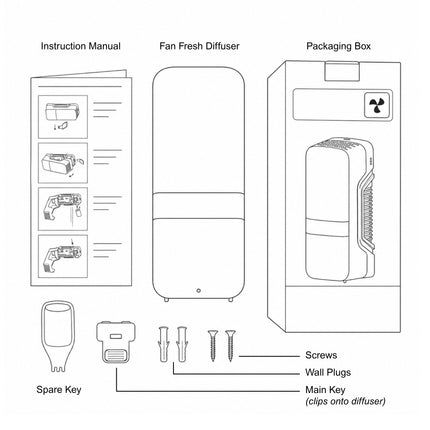

Step 1: Unpacking the Dispenser

1. Open the packaging and take out the dispenser along with the accessory pack.
2. The accessory pack includes a key and two screws.
3. Keep all parts handy for the installation process.

Step 2: Opening the Dispenser

1. Take the provided key and insert it into the slot located on the top of the dispenser.
2. Turn the key and pull the top part of the dispenser to open it.

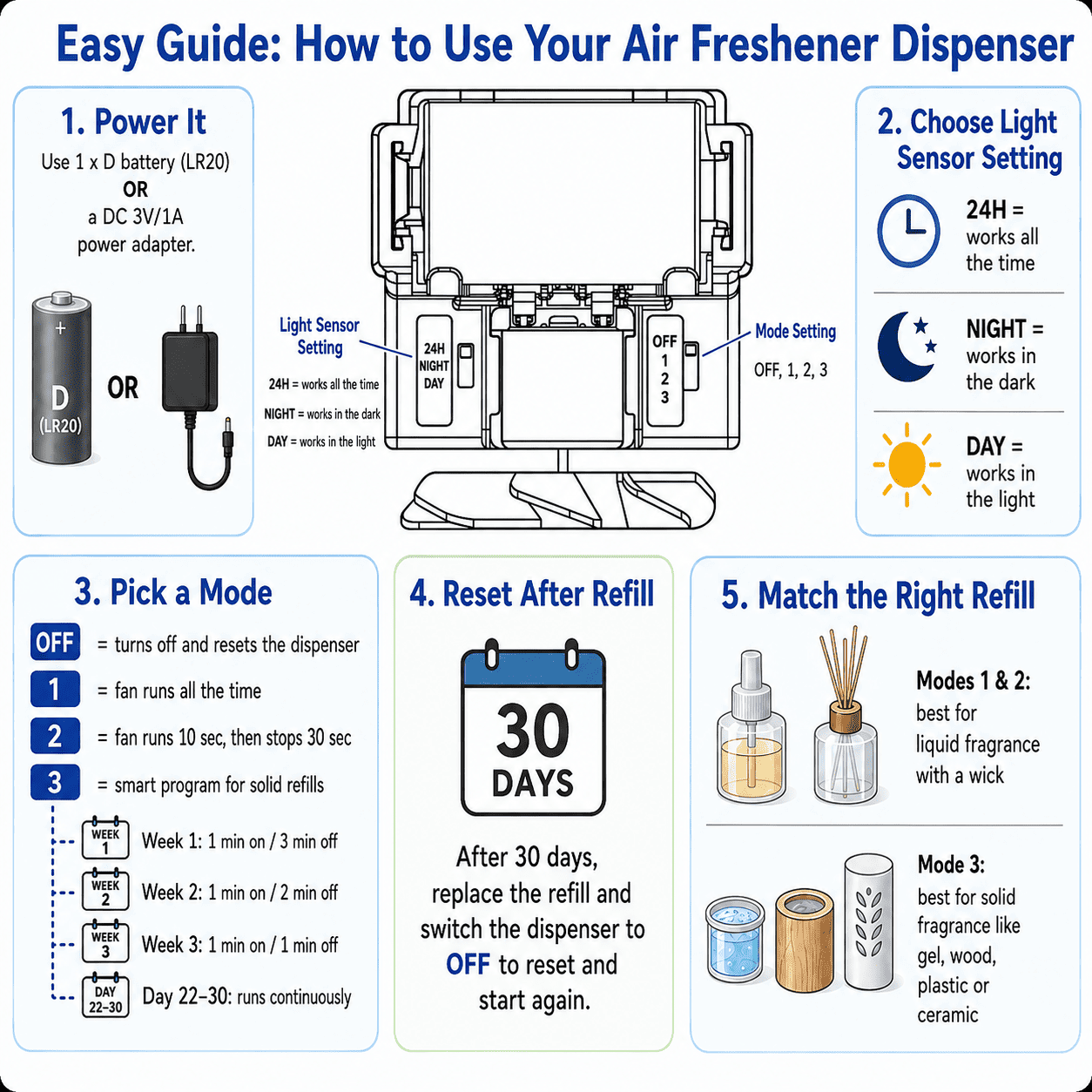

Step 3: Powering the Dispenser

Here, you have the option to use the alkaline batteries or DC power to power up the air dispenser.

Option 1: Battery Power (not included)

1. Insert one piece of D alkaline battery (LR20) into the battery compartment.
2. Ensure the battery is placed in the correct orientation as indicated by the + and - symbols.

Option 2: AC/DC Power Supply (not included)

1. Connect the DC 3V/1A power adapter to the power port on the dispenser.
2. Plug the adapter into a power outlet.

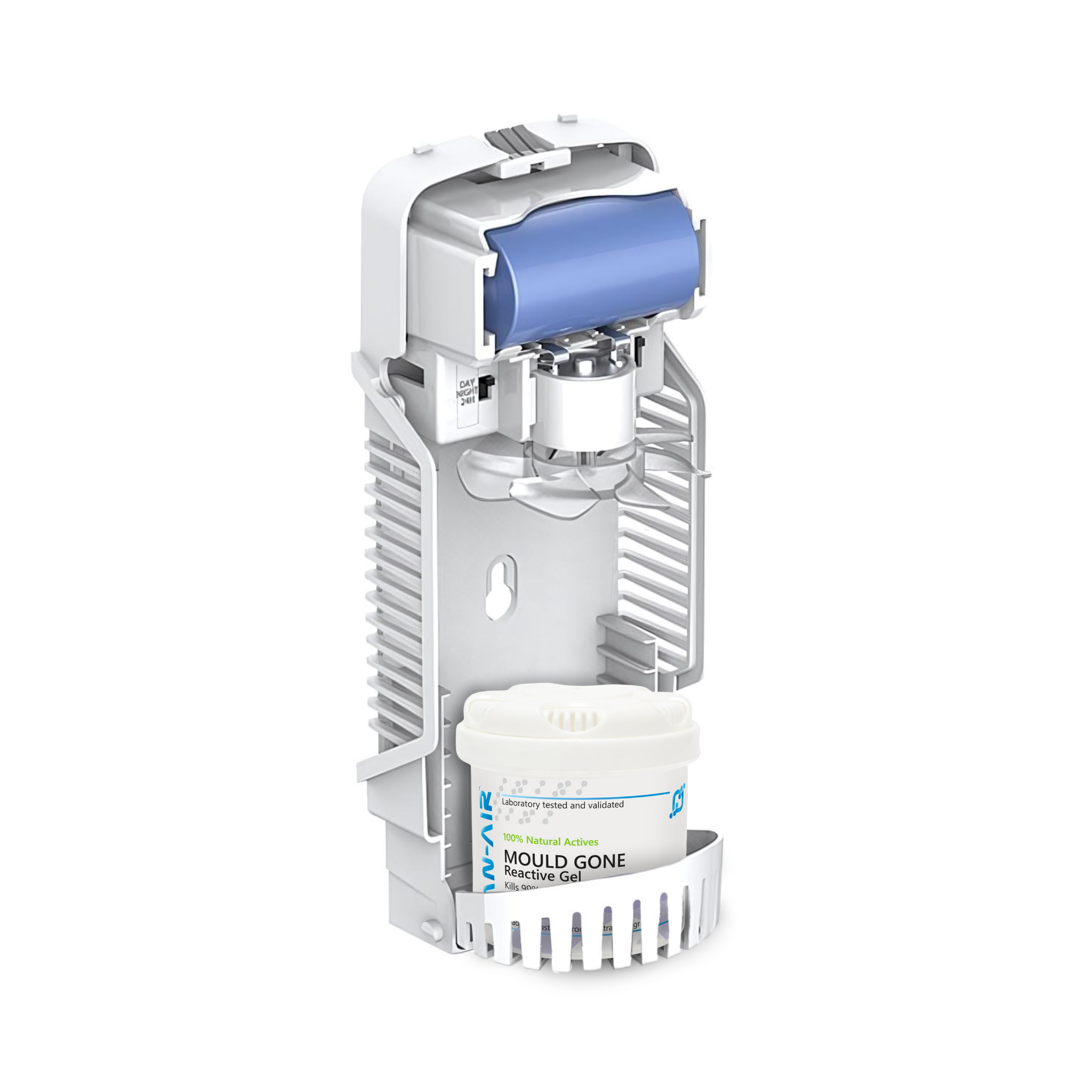

Step 4: Adjusting the Ventilated Holder

1. Adjust the ventilated holder inside the dispenser to your preferred position.
2. Note that positioning the holder closer to the fan will result in a stronger airflow on the refill.

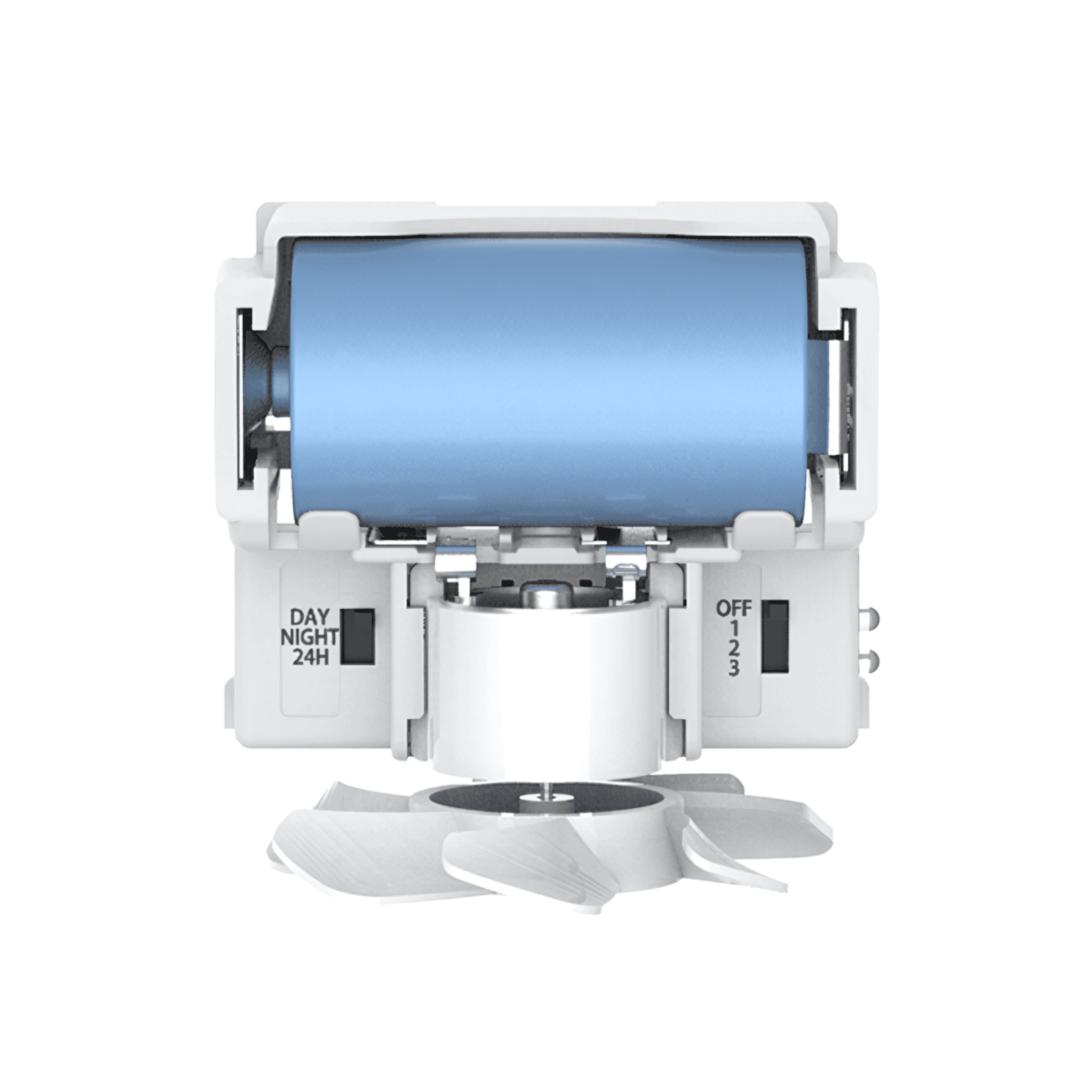

Step 5: Setting the Light Sensor and Working Mode

1. Locate the light sensor and working mode settings inside the dispenser.
2. Adjust the settings according to your preference. Options may include:
3. Continuous operation
4. Day mode
5. Night mode
6. Interval-based operation

Step 6: Closing the Dispenser

1. After adjusting the settings and placing the refill, close the dispenser by aligning the top part and pushing it back into place.
2. Ensure it is securely locked.
3. Once the dispenser is powered and settings are adjusted, the wide fan will start moving the air freshener from top to all three directions.

Main Material: PP

Replaceable Action Heads: Yes

Action Heads: AH-510

Power: 1PCS D Alkaline battery or DC3V/1A Power supply

Refill : Universal or 80ml Refillable Bottle Wick

Key and Lock: Yes

Installation: Wall mounted
